DIN code       ASME 150/300       API Code      JIS Code     WEIGHT (ASME Flange)



FLANGE ±Ô°ÝÇ¥ (ASME 600/900)

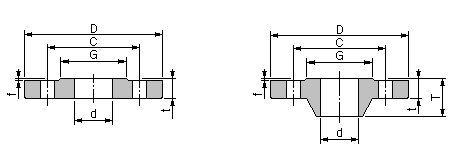

SLIP-ON

WELDING NECK



ASME 600 lbs


ASME B16.5 FORGED FLANGE                                                                                                 Unit : mm

Size  (inch)

D.

t

G

T1

T2

B2

C

Number of holes

Bolting Dia. of holes

Stud Bolt Size

1/2

95.2

14.2

35.0

52.3

22.4

22.4

66.5

4

16

 1/2-13UNCx85L

3/4

117.3

15.7

42.9

57.2

25.4

27.7

82.5

4

19

 5/8-11UNCx90L

1

123.9

17.5

50.8

62.0

26.9

34.5

88.9

4

19

 5/8-11UNCx95L

1 1/4

133.3

20.6

63.5

66.5

28.4

43.2

98.5

4

19

 5/8-11UNCx105L

1 1/2

155.4

22.3

73.1

69.9

31.8

49.5

114.3

4

22

 3/4-10UNCx110L

2

165.1

25.4

91.9

73.2

36.6

62.0

127.0

8

19

 5/8-11UNCx110L

2 1/2

190.5

28.4

104.6

79.2

41.1

74.7

149.3

8

22

 3/4-10UNCx120L

3

209.5

31.7

127.0

82.6

46.0

90.7

168.1

8

22

 3/4-10UNCx130L

3 1/2

228.6

35.0

139.7

85.9

49.3

103.4

184.1

8

25

 7/8-9UNCx140L

4

273.0

38.1

157.2

101.6

53.8

116.1

215.9

8

25

 7/8-9UNCx150L

5

330.2

44.4

185.7

114.3

60.5

143.8

266.7

8

28

 1-8UNCx165L

6

355.6

47.7

215.9

117.3

66.5

170.7

292.1

12

28

 1-8UNCx175L

8

419.1

55.6

269.7

133.4

76.2

221.5

349.2

12

32

 1 1/8-8UNx200L

10

508.0

63.5

323.8

152.4

85.9

276.4

431.8

16

35

 1 1/4-8UNx220L

12

558.8

66.5

381.0

155.4

91.9

327.2

488.9

20

35

 1 1/4-8UNx225L

14

603.2

69.8

412.7

165.1

93.7

359.2

527.0

20

39

 1 3/8-8UNx235L

16

685.8

76.2

469.9

177.8

106.4

410.5

603.2

20

42

 1 1/2-8UNx255L

18

742.9

82.5

533.4

184.2

117.3

461.8

654.0

20

45

 1 5/8-8UNx275L

20

812.8

88.9

584.2

190.5

127.0

513.1

723.9

24

45

 1 5/8-8UNx295L

22

869.9

95.3

641.3

196.8

133.3

564.3

777.9

24

48

 1 3/4-8UNx305L

24

939.8

101.6

692.1

203.2

139.7

616.0

838.2

24

51

 1 7/8-8UNx330L

26

1016.0

108.0

749.3

222.3

222.3

666.8

914.4

28

51

 1 7/8-8UNx340L

28

1073.1

111.1

800.1

234.9

234.9

717.5

965.2

28

54

 2-8UNx350L



ASME 900 lbs




 ASME B16.5 FORGED FLANGE                                                                                                Unit : mm

Size  (inch)

D

t

G

T1

T2

B2

C

Number of holes

Bolting Dia. of holes

Stud Bolt Size

1/2

120.7

22.4

35.1

60.5

31.8

22.4

82.6

4

22

 3/4-10UNCx115L

3/4

130.0

25.4

42.9

69.9

35.1

27.7

88.9

4

22

 3/4-10UNCx120L

1

149.4

28.4

50.8

73.2

41.1

34.5

101.6

4

25

 7/8-9UNCx135L

1 1/4

158.8

28.4

63.5

73.2

41.1

43.2

111.3

4

25

 7/8-9UNCx135L

1 1/2

177.8

31.8

73.2

82.6

44.5

49.5

124.0

4

28

 1-8UNCx145L

2

215.9

38.1

91.9

101.6

57.2

62.0

165.1

8

25

 7/8-9UNCx155L

2 1/2

244.3

41.1

104.6

104.6

63.5

74.7

190.5

8

28

 1-8UNCx165L

3

241.3

38.1

127.0

101.6

53.8

90.7

190.5

8

25

 7/8-9UNCx155L

4

292.1

44.5

157.2

114.3

69.9

116.1

235.0

8

32

 1 1/8-8UNx180L

5

349.3

50.8

185.7

127.0

79.2

143.8

279.4

8

35

 1 1/4-8UNx200L

6

381.0

55.6

215.9

139.7

85.9

170.7

317.5

12

32

 1 1/8-8UNx200L

8

469.9

63.5

269.7

162.1

101.6

221.5

393.7

12

38

 1 3/8-8UNx230L

10

546.1

69.9

323.9

184.2

108.0

276.4

469.9

16

38

 1 3/8-8UNx240L

12

609.6

79.2

381.0

200.2

117.3

327.2

533.4

20

38

 1 3/8-8UNx260L

14

641.4

85.9

412.8

212.9

130.0

359.2

558.8

20

41

 1 1/2-8UNx280L

16

704.9

88.9

469.9

215.9

133.4

410.5

616

20

45

 1 5/8-8UNx295L

18

787.4

101.6

533.4

228.6

152.4

461.8

685.8

20

51

 1 7/8-8UNx330L
